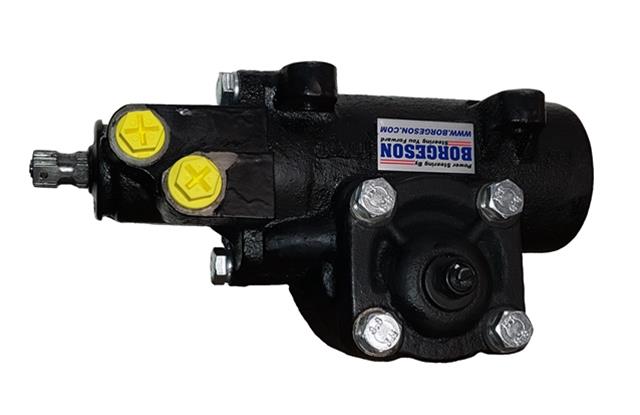

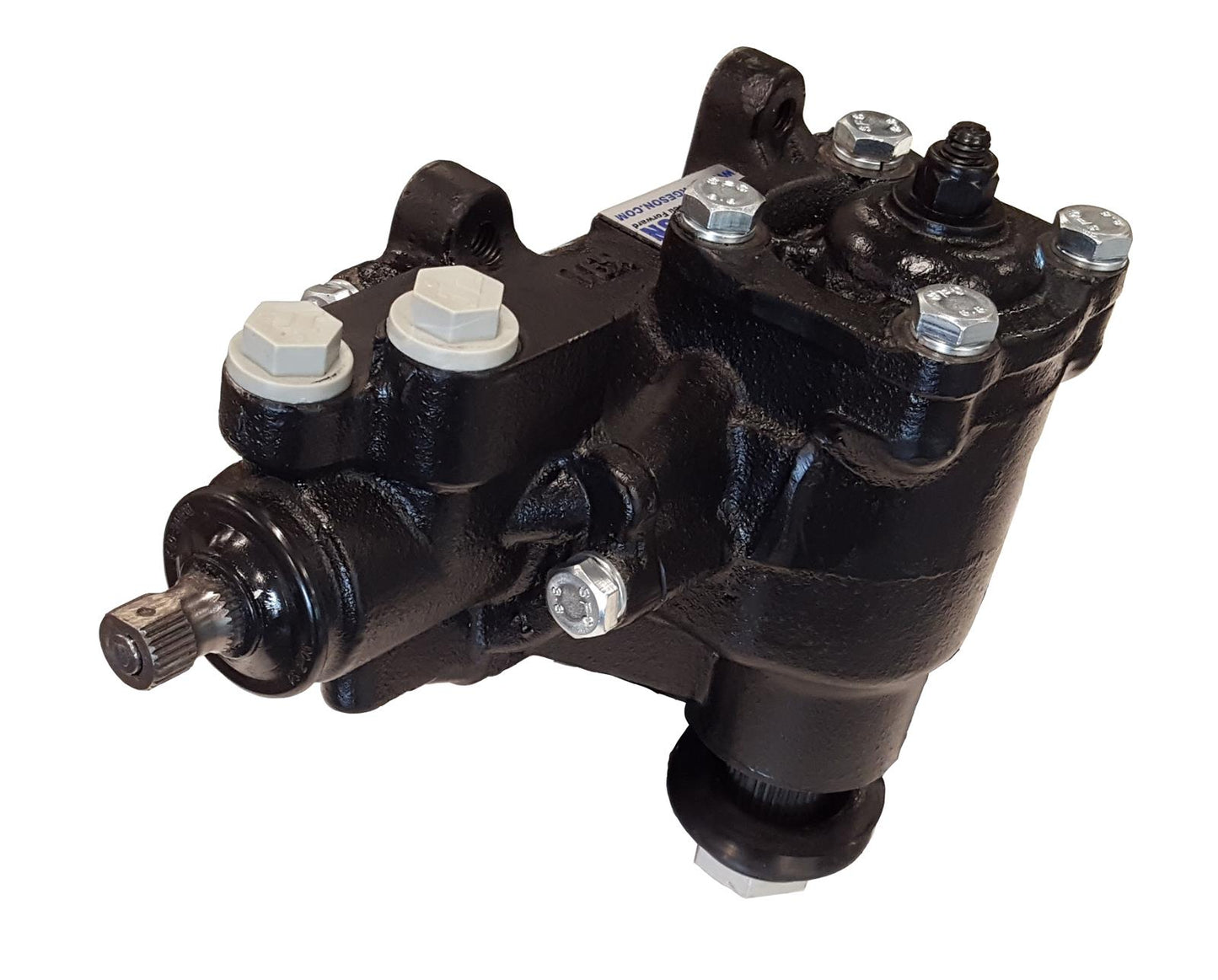

Borgeson Universal Street and Performance Series Steering Boxes 800130

Borgeson Universal Street and Performance Series Steering Boxes 800130

Regular price $455.00 USD
Regular price Sale price $455.00 USD
Sale Sold out

Steering Box, Street & Performance, Power Assist, Cast Iron, Black, 12.7:1 Ratio, Buick, Cadillac, Chevy, Oldsmobile, Pontiac, Each

Brand:
Manufacturer's Part Number:
800130
Part Type:
Product Line:
Summit Racing Part Number:
BRG-800130
UPC:
843975017518
Steering Box Type:
Power assist
Steering Box Material:
Cast iron
Steering Box Finish:
Black
Steering Box Style:
Front steer
Steering Ratio:
12.7:1
Input Shaft Spline Size:
3/4 in. 30-spline
Pitman Arm Included:
No
Mounting Bracket Included:
No
Remanufactured:
No
Quantity:
Sold individually.
Special Attention:
Models older than 1977 require BRG-990012 steering coupler. Requires power steering pitman arm. Includes adapters to accept either o-ring or inverted flare fittings. Features 3/4 in.-30 spline input shaft, 1.250 in., 32-spline output.

Borgeson's Street and Performance Series steering boxes are modern quick ratio units specially designed to replace the Saginaw/Delphi 800 Series in 1965 and up GM vehicles and 1968-86 Chevy C10 and K10 trucks. These Street and Performance power steering boxes will bolt directly to the stock location and fit to the original power steering pitman arms. Adapters are included with each steering box to be able to use either O-ring or flare style hose connections. All Borgeson power steering boxes are assembled and quality tested in-house to ensure you get the best possible replacement for your vehicle.

Note: Vehicles switching from manual steering will require a power steering pitman arm (not included).

Fits: Buick, Cadillac, Chevrolet, GMC, Jeep, Oldsmobile, Pontiac Cars & Trucks 1961-2002
Drivetrain: 4WD, AWD, FWD, RWD
