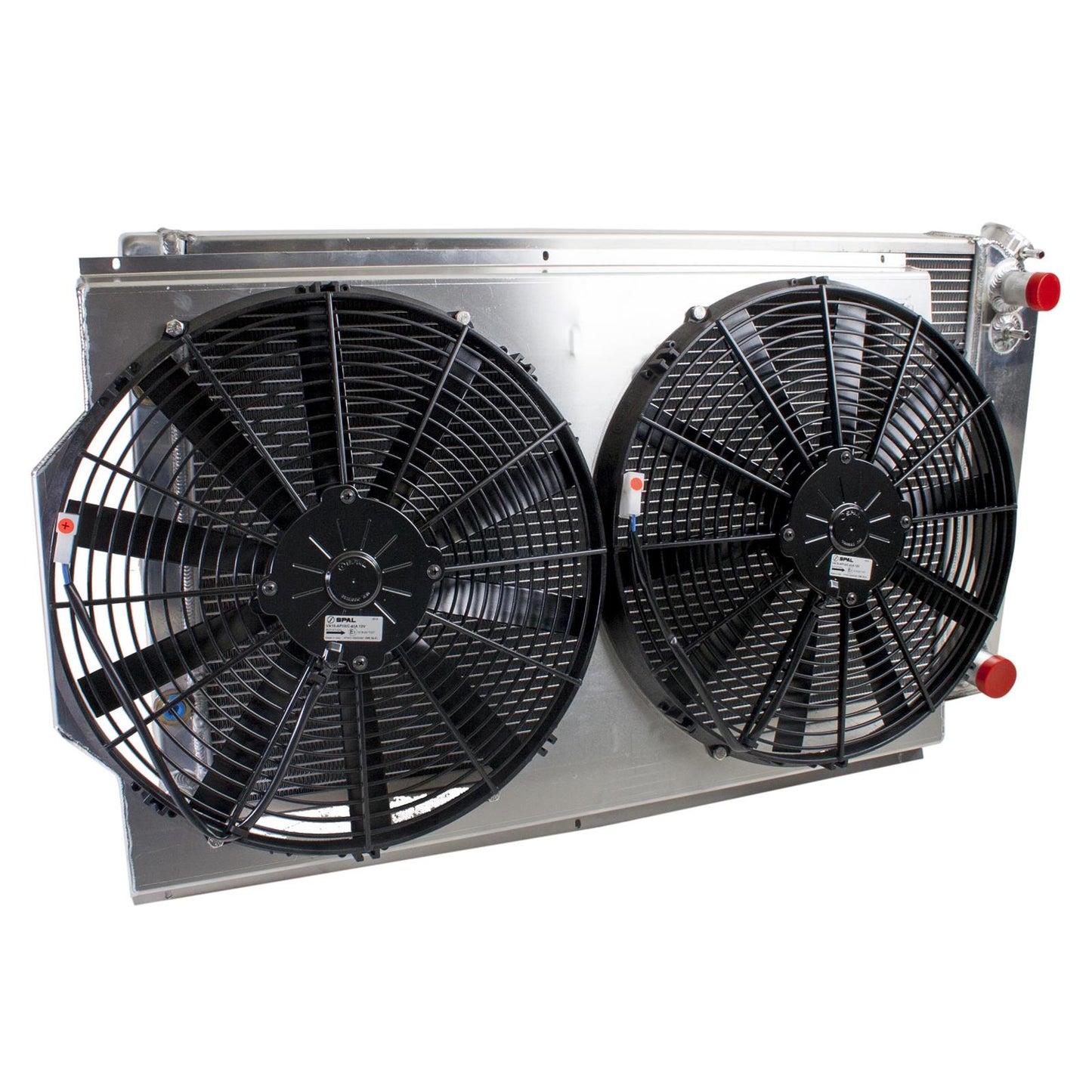

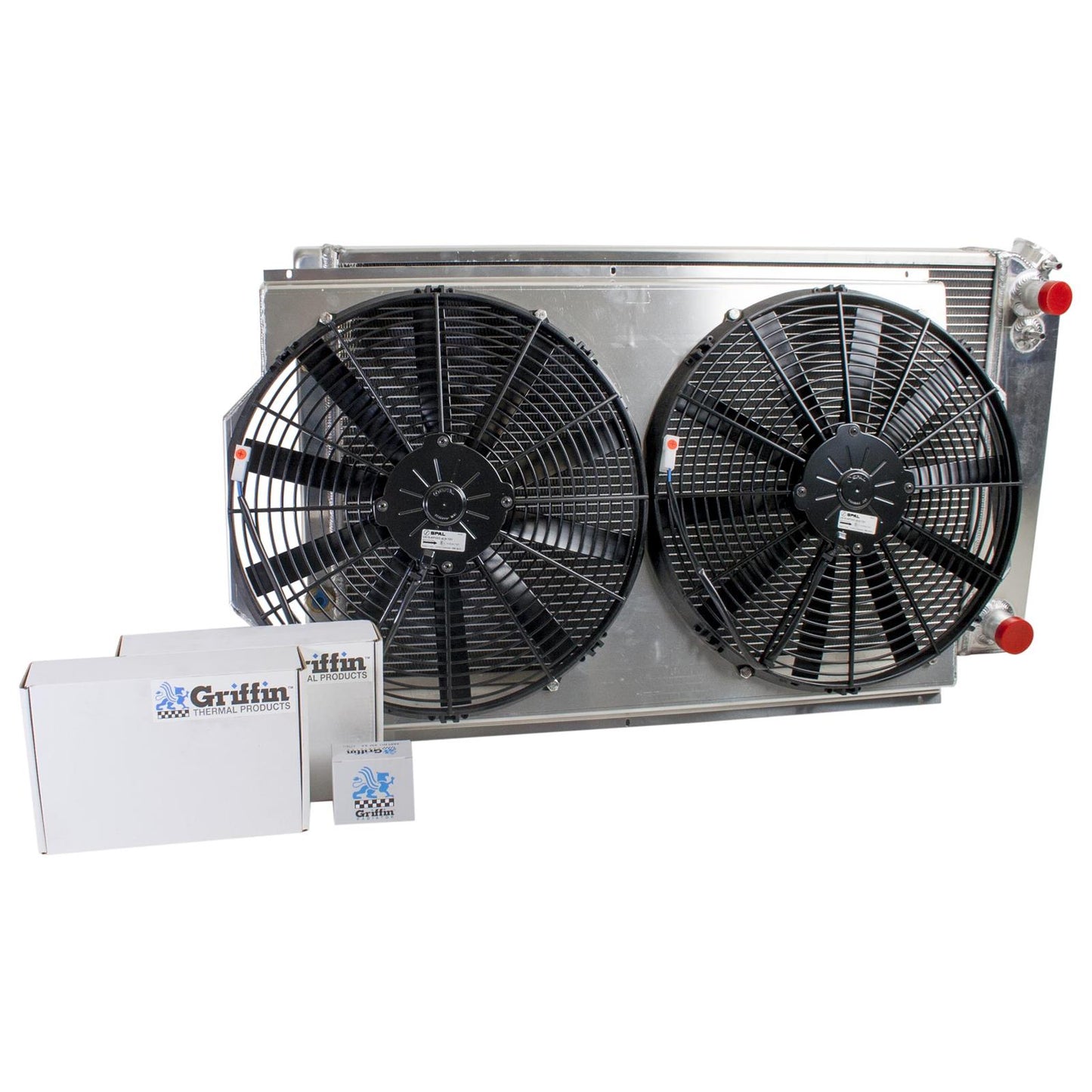

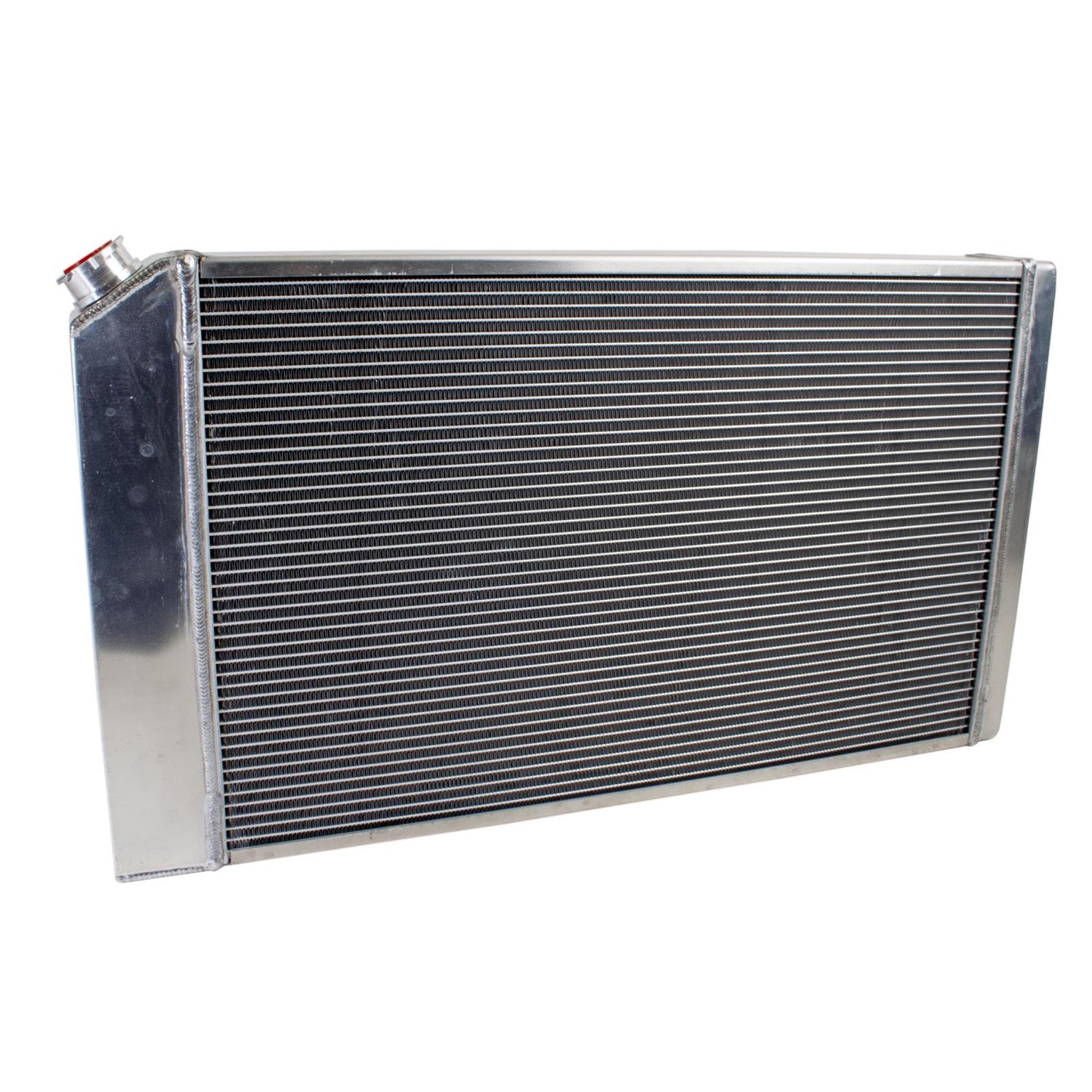

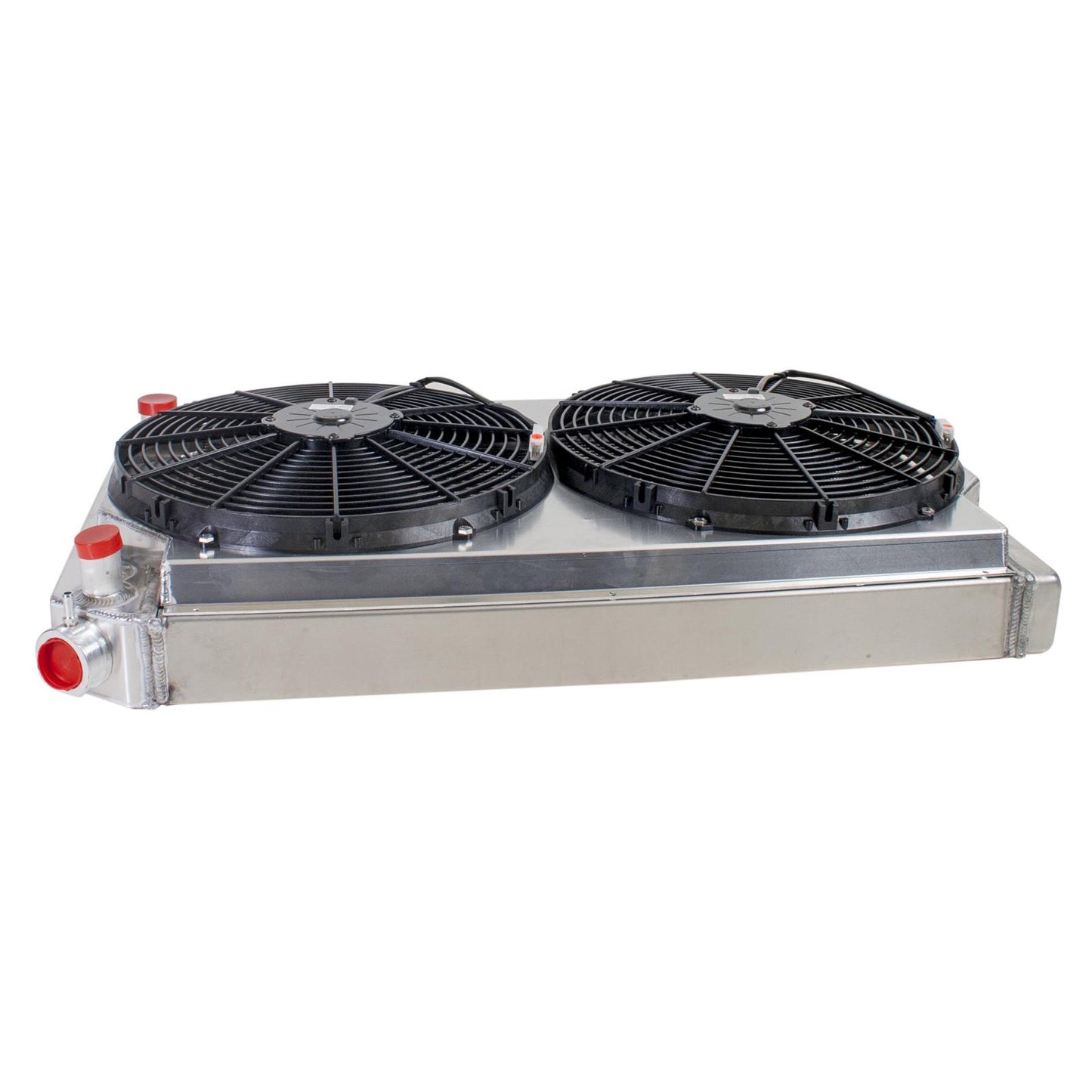

Griffin Performance Fit Radiator Combos CU-70008-LS for 1977-1988 Buick, Cadillac, Chevy, Oldsmobile, Pontiac

Griffin Performance Fit Radiator Combos CU-70008-LS for 1977-1988 Buick, Cadillac, Chevy, Oldsmobile, Pontiac

Regular price $1,015.00 USD
Regular price Sale price $1,015.00 USD
Sale Sold out

Radiator and Fan, Aluminum, Crossflow, 33.25 in. W, 18.5 in. H, 6.42 Thk, Dual Fan, Automatic, LS Swap, Kit

Brand:
Manufacturer's Part Number:
CU-70008-LS
Part Type:
Product Line:
Summit Racing Part Number:
GRI-CU-70008-LS
UPC:
766897320958
Radiator Material:
Aluminum
Radiator Style:
Crossflow
Transmission Cooler:
Yes
Inlet Location:
Upper passenger side
Outlet Location:
Lower passenger side
Overall Width (in.):
33.25 in.
Overall Height (in.):
18.62 in.
Overall Thickness (in.):
6.42
Row Quantity:
2
Radiator Finish:
Natural
Core Width (in.):
28.00 in.
Core Height (in.):
19.00 in.
Core Thickness (in.):
2.68 in.
Radiator Inlet Size:
1.250 in.
Radiator Outlet Size:
1.500 in.
Trans Cooler Line Connection:
1/4 in. NPT
Trans Cooler Adapter Fittings Included:
No
Tube Size:
1 1/4 in.
Fan Included:
Yes
Fan Quantity:
Dual
Fan Diameter (in.):
16.00 in.
Maximum Fan CFM:
2,596 cfm
Fan CFM Range:
2,500-2,599
Blade Material:
Plastic
Blade Color:
Black
Shroud Material:
Aluminum
Shroud Color:
Natural
Radiator Cap Included:
Yes
Quantity:
Sold as a kit.
Notes:
10.4 amp draw per fan.

Fits: Buick, Cadillac, Chevrolet, Oldsmobile, Pontiac 1977-1988 Automatic Transmission Cars & Trucks
