Holley EFI 6.86 in. Pro Dash Touch Screens 553-112 - Universal

Holley EFI 6.86 in. Pro Dash Touch Screens 553-112 - Universal

Regular price $1,260.95 USD
Regular price Sale price $1,260.95 USD
Sale Sold out
Tax included.

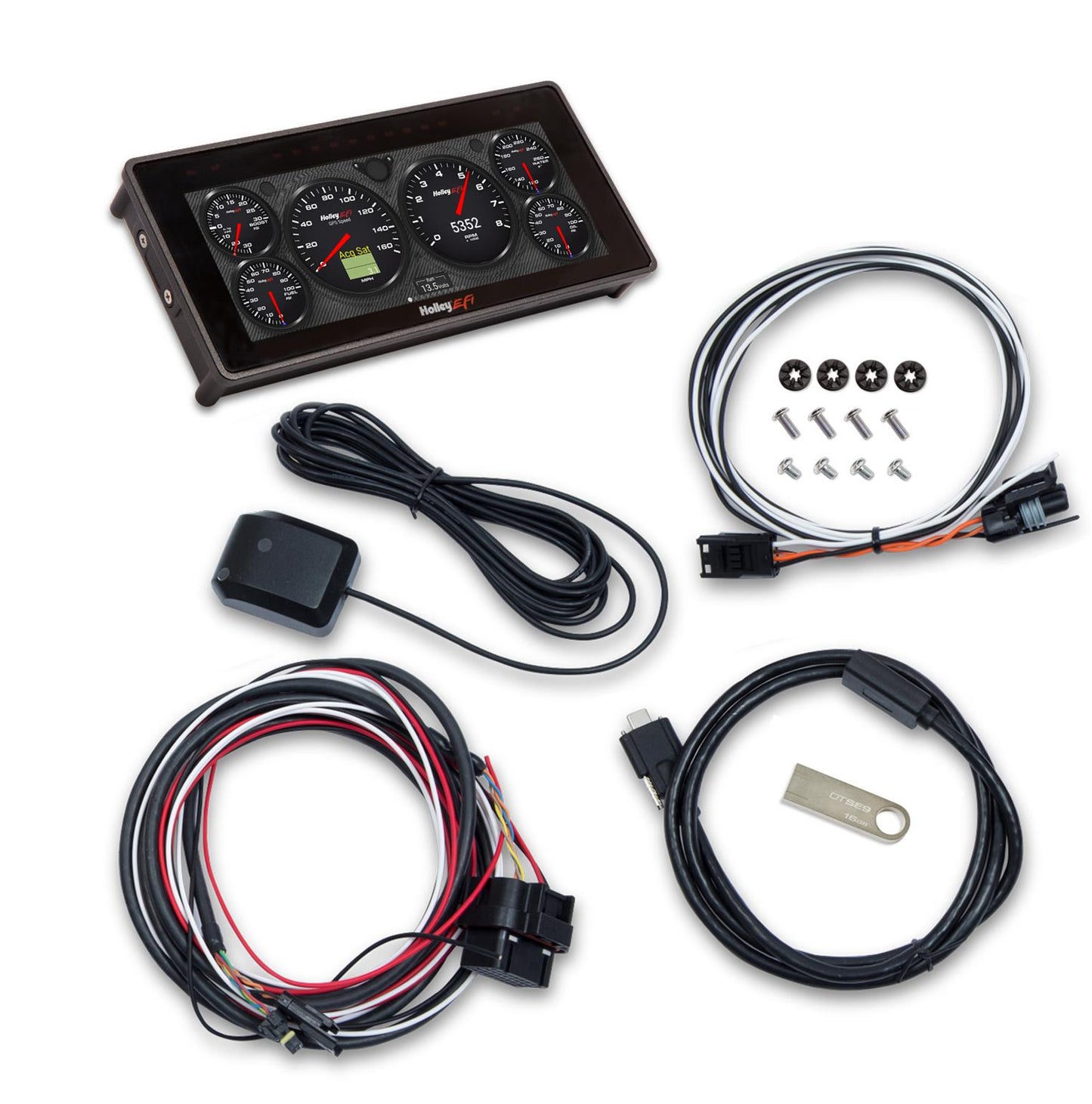

Fuel Injection System Components, Holley EFI, 6.86 in. Pro Dash, Touch Screen, Black Case, Wire Harness, Multiple Inputs, Built-in GPS, Odometer, Kit

Brand:
Manufacturer's Part Number:
553-112
Part Type:
Product Line:
Summit Racing Part Number:
HLY-553-112
UPC:
090127072790
Fuel Injection System Component Type:
Dash gauges
Remanufactured:
No
Quantity:
Sold as a kit.
Notes:
Will not fit the Sniper EFI 2 systems.

Features:

* Plug-and-play display support for Dominator, HP, Terminator X, and generation 1 Sniper EFI
* Integrated a 10 LED programmable shift light with 4 LED warning indicators for other sensor inputs.
* Capable of monitoring up to 238 real-time values such as rpm/TPS/boost
* 10 default background skins pre-loaded with unlimited options for importing custom layouts
* Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
* Virtual switch panel eliminates the need for external toggle switches
* Manual or auto-brightness features for easy viewing day or night
* Built-in GPS with odometer function (antenna included)
* On-screen datalog playback features allow you to review vital run information
* Expandable storage via USB
* No stylus required, capacitive touch, just like your smart phone
* User definable channel alarms and warnings
* Four 10-32 mounting holes for surface or flush mounting with high-quality hardware
* USB keyboard and mouse functionality makes it quick and easy to setup new layouts

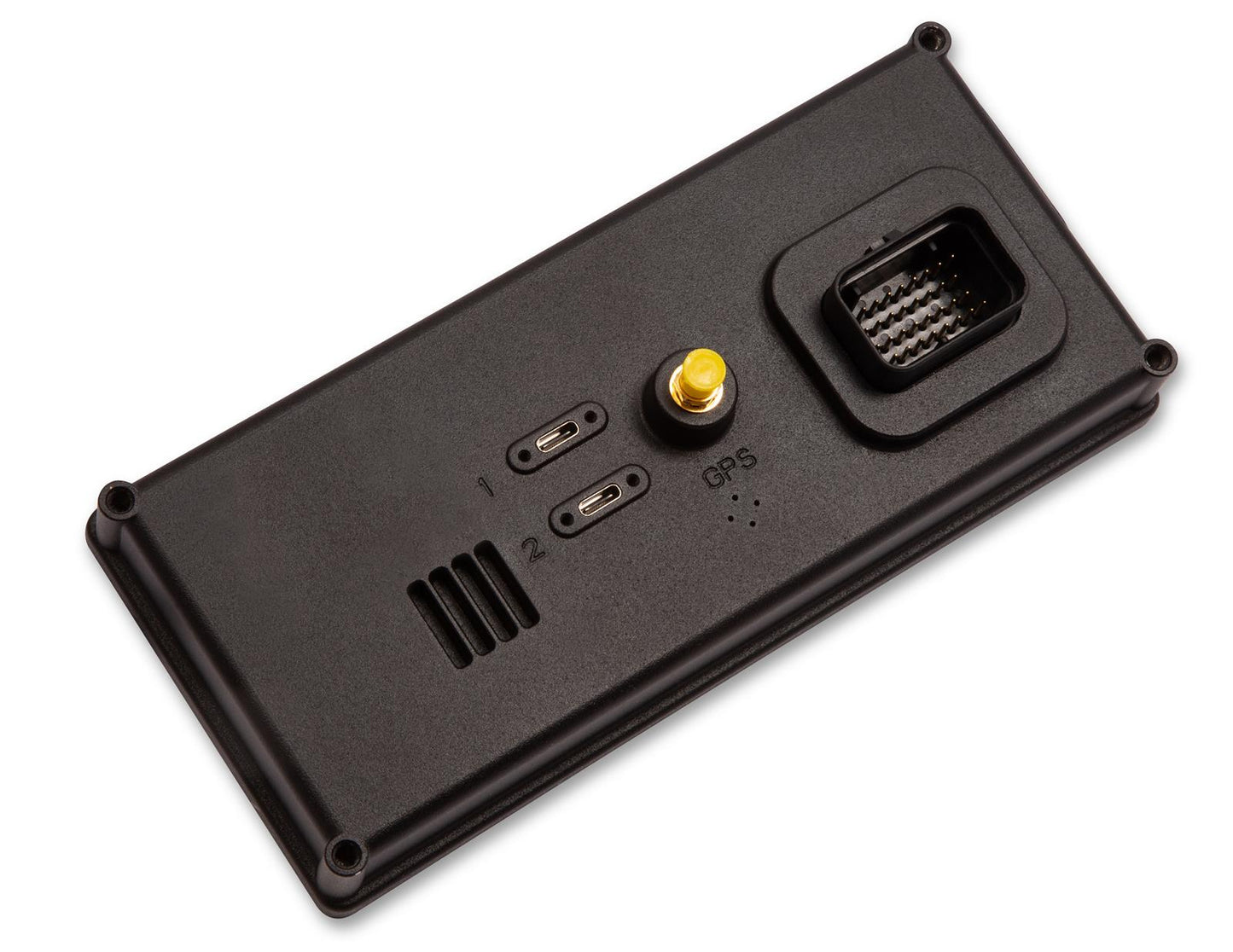

* Includes 34-pin wiring harness contains power, ground, and CANbus connections
* Input and output functionality for 13 multi-configurable inputs, and four ground switched outputs
* User defined alarms for any input
* Upgradable with future software enhancements

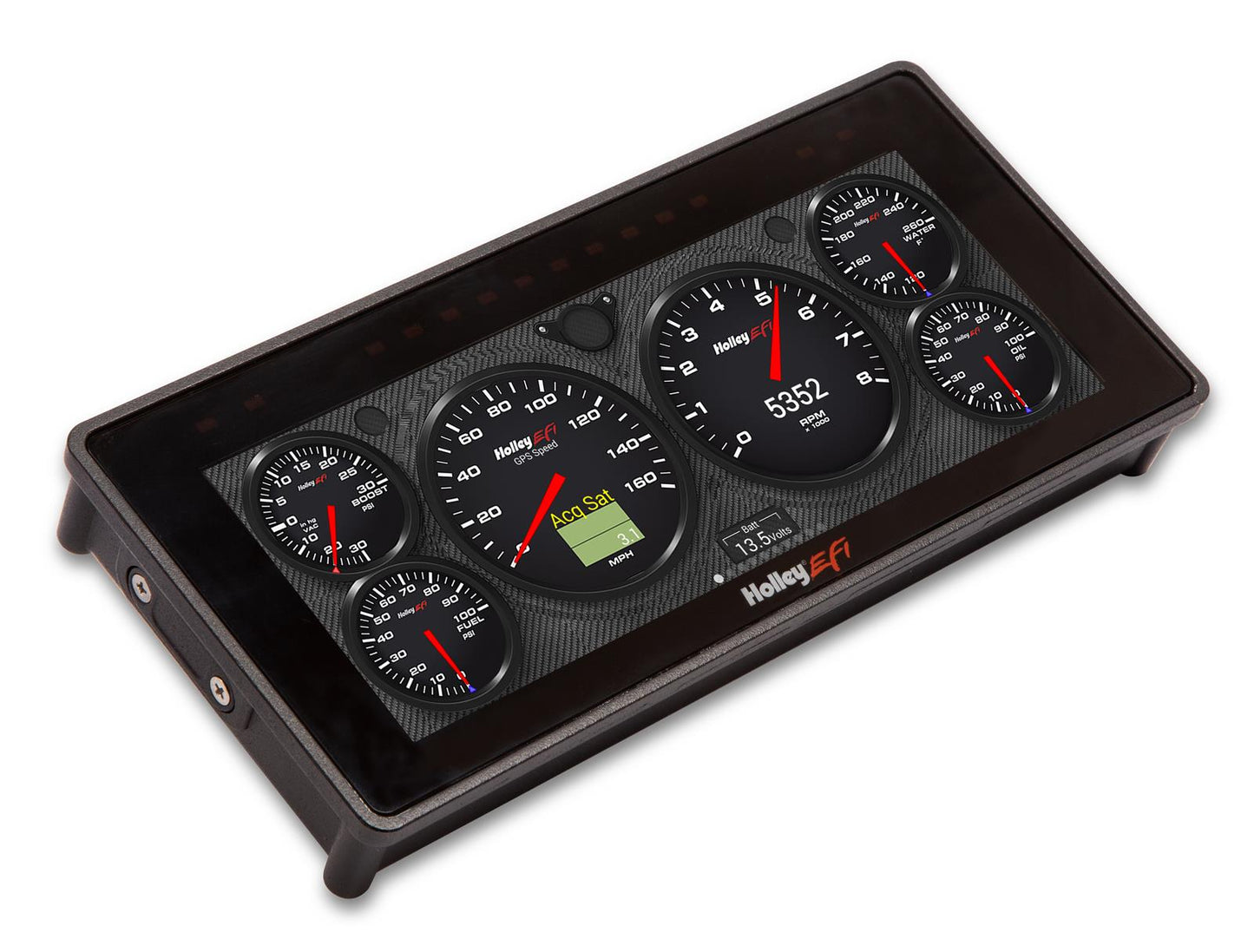

* Viewing area is 6.86 in. on the diagonal
* Dash weight is 1.2 lbs.
* Real-time ECU tuning--HP/Dominator ECUs only

Universal:
Yes
Fuel Injection Kit Manufacturer:
Holley
Fuel Injection Configuration:
Holley Dominator EFI
Application Notes:
Will not fit the Sniper EFI 2 systems.
Universal:
Yes
Fuel Injection Kit Manufacturer:
Holley
Fuel Injection Configuration:
Holley HP EFI
Application Notes:
Will not fit the Sniper EFI 2 systems.
Universal:
Yes
Fuel Injection Kit Manufacturer:
Holley
Fuel Injection Configuration:
Holley Sniper EFI
Application Notes:
Will not fit the Sniper EFI 2 systems.
Universal:
Yes
Fuel Injection Kit Manufacturer:
Holley
Fuel Injection Configuration:
Holley Terminator EFI
Application Notes:
Will not fit the Sniper EFI 2 systems.
