Holley Sniper 2 EFI 650 HP Inline Pump Fuel Injection Systems with Power Distribution Module 550-511-3PK

Holley Sniper 2 EFI 650 HP Inline Pump Fuel Injection Systems with Power Distribution Module 550-511-3PK

$1,799.95 USD
$1,799.95 USD
Sale Sold out
Tax included.

Fuel Injection System, Sniper 2, Self-Tuning, Throttle body, Black, 4150 Flange, 650 hp Max, 800 CFM, Inline Pump, PDM, 3.5 in. Display, Kit

Brand:
Holley Sniper
Manufacturer's Part Number:
550-511-3PK
Part Type:
Fuel Injection Systems
Product Line:
Holley Sniper 2 EFI 650 HP Inline Pump Fuel Injection Systems with Power Distribution Module
Summit Racing Part Number:
SNE-550-511-3PK
UPC:
090127820483
Fuel Injection Style:
Throttle body
Fuel Injection System Type:
Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas:
650
Timing Control Compatible:
Yes
Power Adder Compatible:
No
ECM Included:
Yes
Self Tuning:
Yes
User Tunable:
Yes
Fuel System Included:
Inline pump kit
Fuel Pump Flow Rating (lph):
240
Ignition System Included:
None
Power Distribution Included:
PDM
User Interface Included:
3.5 in. display
EGR:
No
Transmission Controller Included:
No
Metering Style:
Speed density
Multi-Port Fuel Rails Included:
No
Throttle Body Included:
Yes
Throttle Body Mounting Flange:
4-barrel square bore
Venturi Quantity:
4
Airflow Rate (cfm):
800 cfm
Throttle Body Material:
Cast aluminum
Throttle Body Color:
Black
Injectors Included:
Yes
Injector Size (lbs/hr):
100 lbs./hr.
Calibration Module Included:
Yes
Wiring Harness Included:
Yes
Oxygen Sensor Included:
Yes
Fuel Pressure Regulator Included:
Yes
MAP Sensor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
IAC Motor Included:
Yes
Quantity:
Sold as a kit.
Notes:
Kit includes 3.5 in. display and power distribution module.



Holley Sniper 2 EFI 650 HP Inline Pump Fuel Injection Systems with Power Distribution Module

Holley Sniper 2 EFI Inline Pump Fuel Injection Systems are self-tuning, easy-to-install, EFI conversions for 4-barrel (4150 flange) style carburetors. They took everything that they learned from the original Sniper EFI system and added new features that will make your EFI conversion more simple, reliable, and modern. Like all Sniper EFI systems, Sniper 2 is designed to work with the Sniper Ecosystem that includes Hyperspark ignition, complete fuel systems, multiple user interfaces/dash displays, and more.

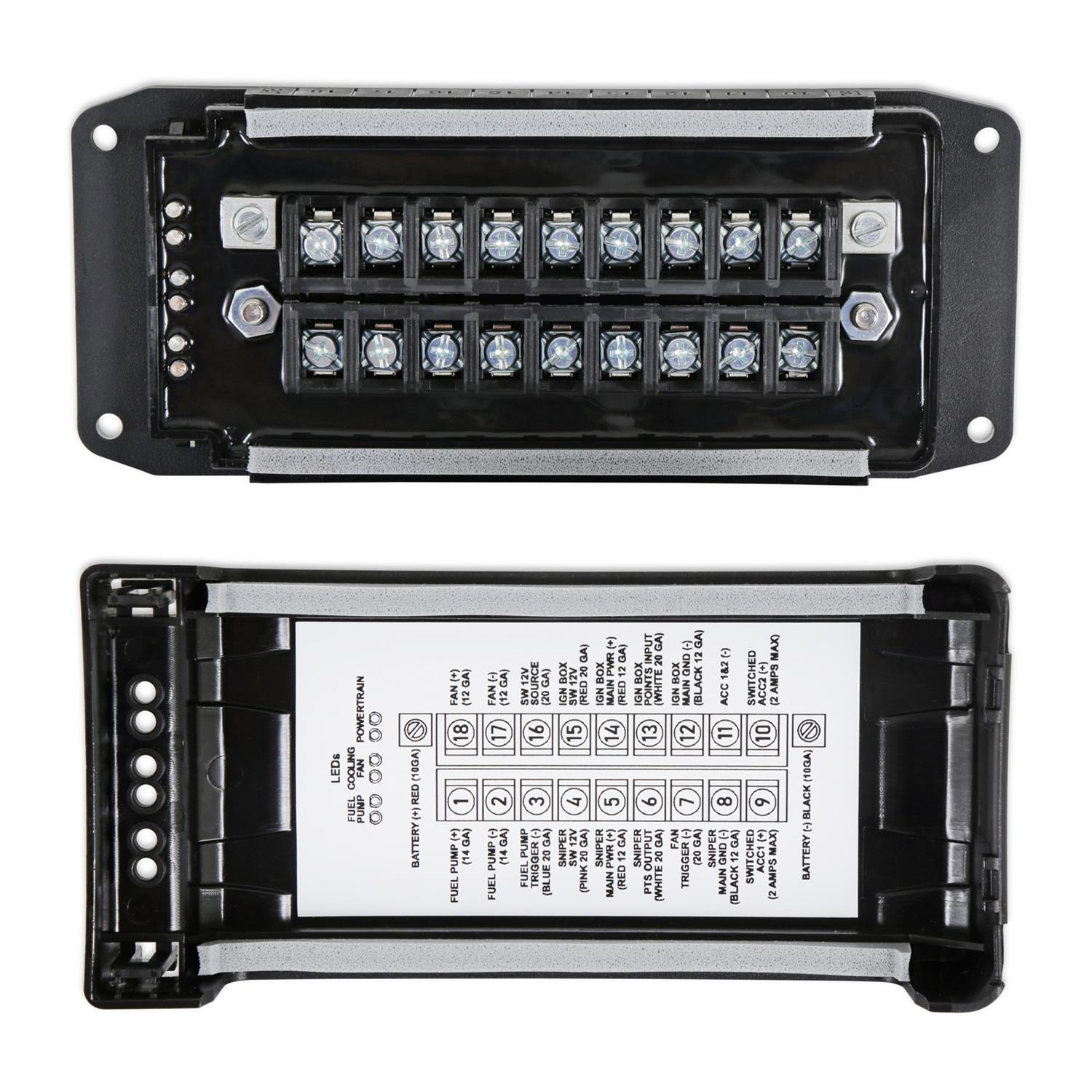

New for Sniper 2 is the Power Distribution Module (PDM). This cost-effective and optional accessory isolates the core of your EFI and ignition wiring into one, easy-to-use location. Simply slide the stripped wire ends under the positive lock connector and tighten down the set screw. Battery and a switched 12 V source is all that's required to power the PDM and your Sniper EFI.

Make your classic drive like a modern fuel-injected vehicle, with easy cold starts, smooth drivability, and improved fuel economy! Sniper 2 is designed to be installed at home in your garage with limited tools and the support of Holley's comprehensive installation manual and videos. The user-friendly setup wizard allows you to answer a few simple questions about your engine—and the system will begin self-tuning with no laptop or tuning required. If you're looking for a high-performance fuel injection system that delivers power, efficiency, and ease of use, look no further than the Sniper 2 EFI.

Main features:
* Only 4 wiring connections required: Battery+, Battery-, Switched Ignition, and RPM

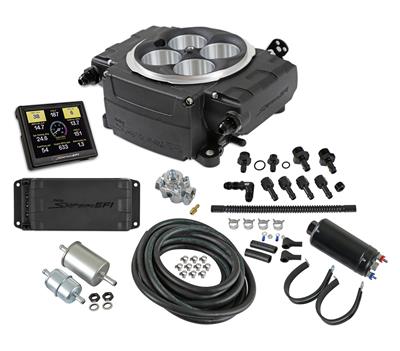

* Includes 20 feet of 3/8 in. vapor guard fuel hose, filters for before and after the pump, fittings and hardware, cushioned mounting brackets, and an external, inline pump
* Can be used with 3/8 in. factory sending units or add a dedicated bulkhead fitting
* Innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit and can be rotated 360 degrees for easier clocking.
* Main harness includes plug-and-play HyperSpark distributor support for integrated timing control, making your ignition setup hassle-free
* Wide variety of tuning and gauge display options: from a 3.5 in. full-color LCD hand-held, 5 in. digital dash, or the Bluetooth dongle, which allows you to connect either an iOS or Android based cell phone to your Sniper 2
* Female -6 AN O-ring fittings
* Overall height is only 3.280 in.
* Supports up to 650 hp naturally aspirated or 575 hp on boost with four 100 lbs.-hr. injectors
* Requires 55-65 PSI
* Next generation ECU features improved RF noise and interference resistance (stands up to old car wiring, noisy alternators, faulty plug wires)
* Redesigned throttle shaft and plate geometry for a smoother throttle feel
* Integrated transmission kickdown provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6 applications
* "Hidden Harness" wiring exit from the rear of throttle body for a clean appearance
* Inputs and outputs consist of: 2x ground inputs, 2x ground outputs, 1x TPS output (0-5 V), and 1x tach output
* Redesigned injector connector for improved reliability
* Onboard contactless magnetic TPS sensor ensures an accurate TPS reading
* Next generation mil-spec style M8 positive lock connector for CAN1 and CAN2 provides the latest in CAN bus technology for a simple yet robust connection
* Cast-in fuel crossover from the primary to secondary fuel rail
* The included Bosch LSU 4.9 wideband oxygen sensor provides real-time fuel map learning
* Included clamp-on oxygen sensor kit ensures a leak-free oxygen sensor install with stainless steel T-bolt clamps and a stainless steel weldable oxygen sensor flange
* Sniper 2 throttle bodies are serialized, which provides an improved experience in the event of any unit needing to be inspected

Universal:
Yes
Fuel Type:
GAS
Application Notes:
Kit includes 4 injectors and can support up to 650 hp.
