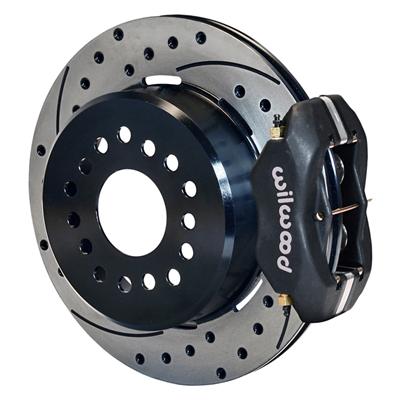

Wilwood Forged Dynalite Rear Parking Brake Kits 140-7140-D Ford Style Housing End Measures

Wilwood Forged Dynalite Rear Parking Brake Kits 140-7140-D Ford Style Housing End Measures

Regular price $1,050.00 USD
Regular price Sale price $1,050.00 USD
Sale Sold out

Disc Brakes, Rear, Dynalite Series, Cross-Drilled, Slotted Rotors, 4-Piston Calipers, Ford, 9 in., Kit

Brand:
Manufacturer's Part Number:
140-7140-D
Part Type:
Product Line:
Summit Racing Part Number:
WIL-140-7140-D
UPC:
889545023329
Position:
Rear
Remanufactured:
No
Front Rotor Included:
No
Brake Rotor Bolt Pattern (in.):
Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm):
Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type:
Ford 9 in.
Axle Housing Flange Style:
Big Ford New Style/Torino (3.562 in. x 2.00 in.)
Rear Rotor Included:
Yes
Rear Rotor Style:
Cross-drilled/Slotted surface
Rear Rotor Construction:
Vented
Rear Rotor Diameter:
12.19 in./309.63mm
Rear Rotor Thickness (in.):
0.81
Front Caliper Included:
No
Rear Caliper Included:
Yes
Rear Caliper Piston Quantity:
Four
Rear Caliper Material:
Forged billet aluminum
Rear Caliper Color:
Black
Parking Brake Provision:
Yes
Parking Brake Style:
Internal drum
Minimum Recommended Wheel Diameter (in.):
15 in.

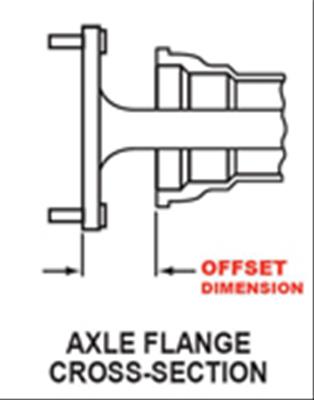

Offset (in.):
2.500 in.
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Brake Hoses Included:
No
Quantity:
Sold as a kit.
Special Attention:

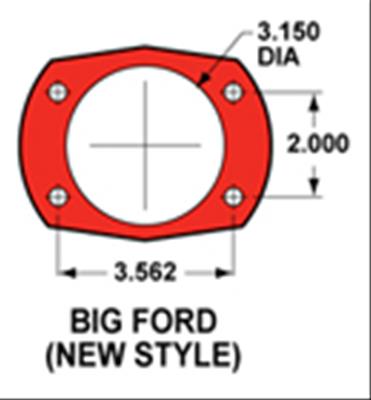

Big Ford new style housing end measures, 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center.
The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.
Drivetrain:
RWD
Application Notes:
Big Ford new style housing end measures, 3.562 in. top bolts center to center, 3.562 in. bottom bolts center to center and 2.000 in. top to bottom bolts center to center.
